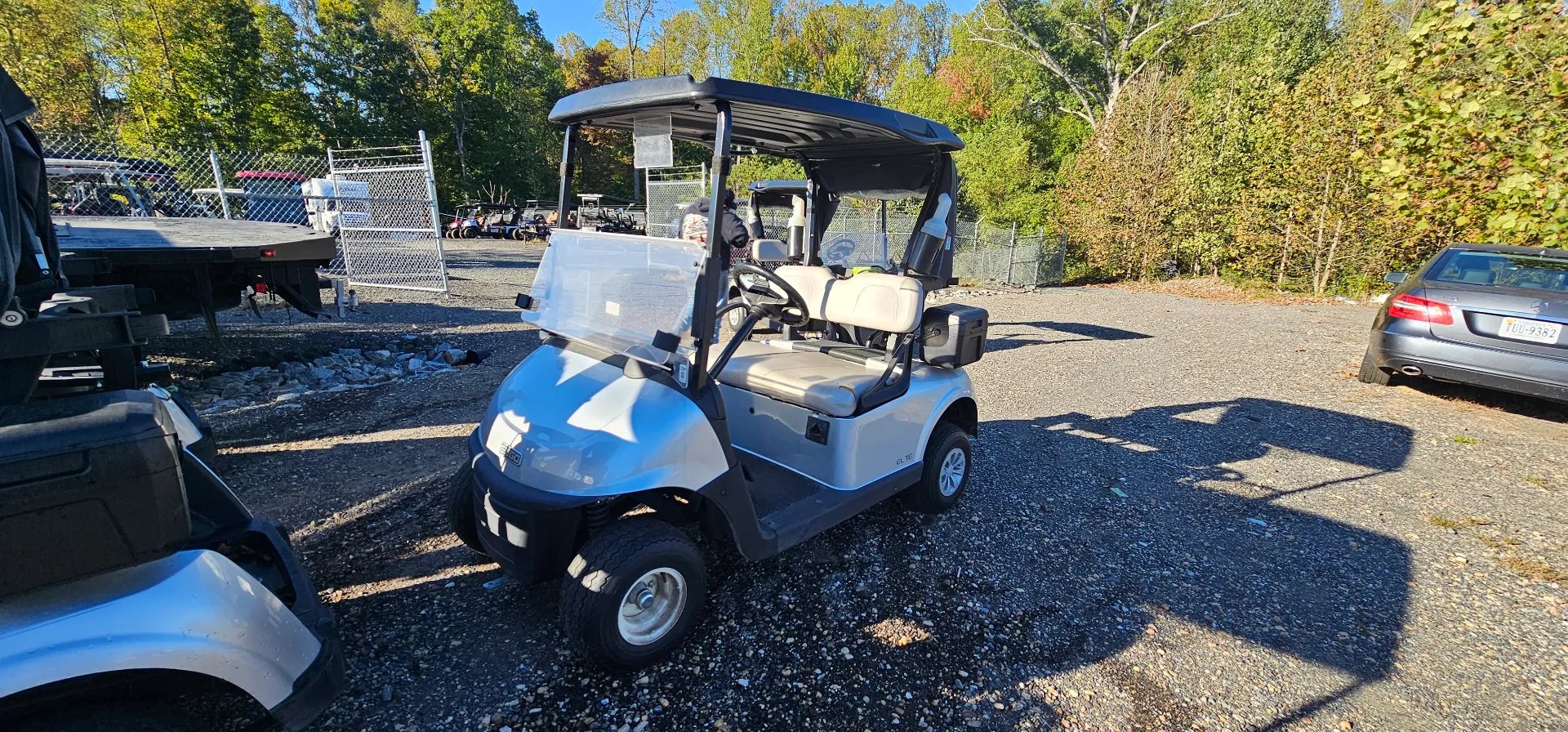

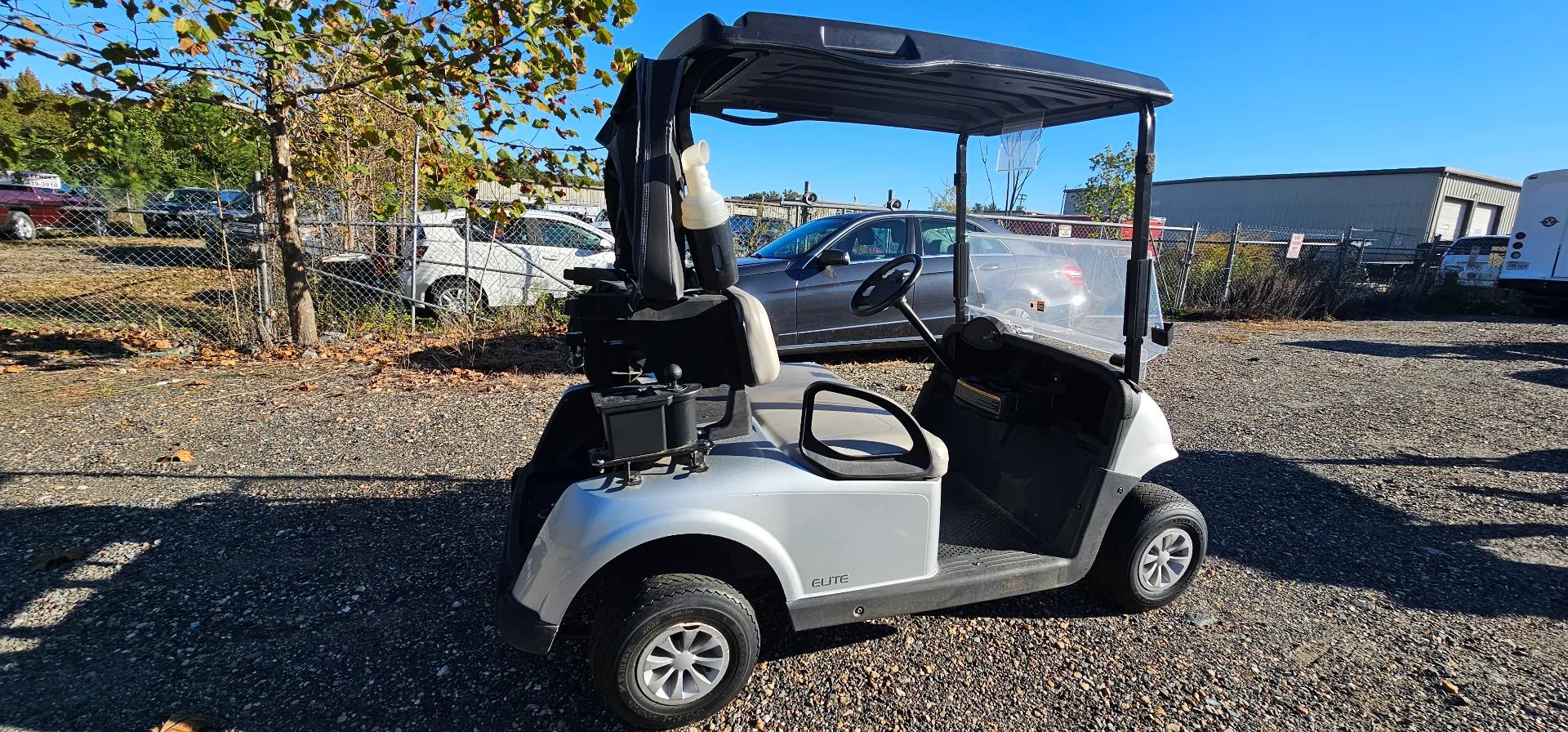

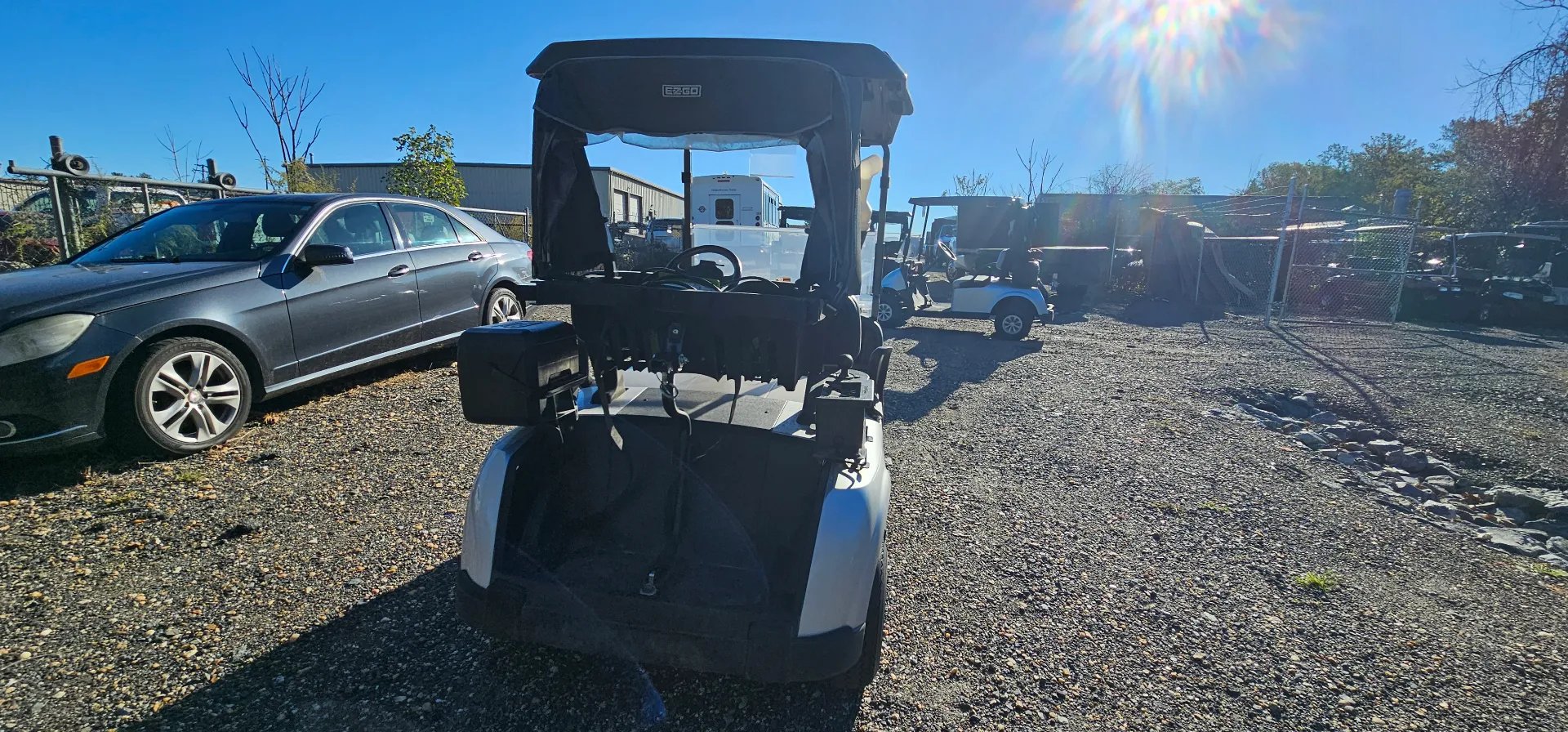

2021 E-Z-GO Freedom RXV

2021 E-Z-GO Freedom RXV

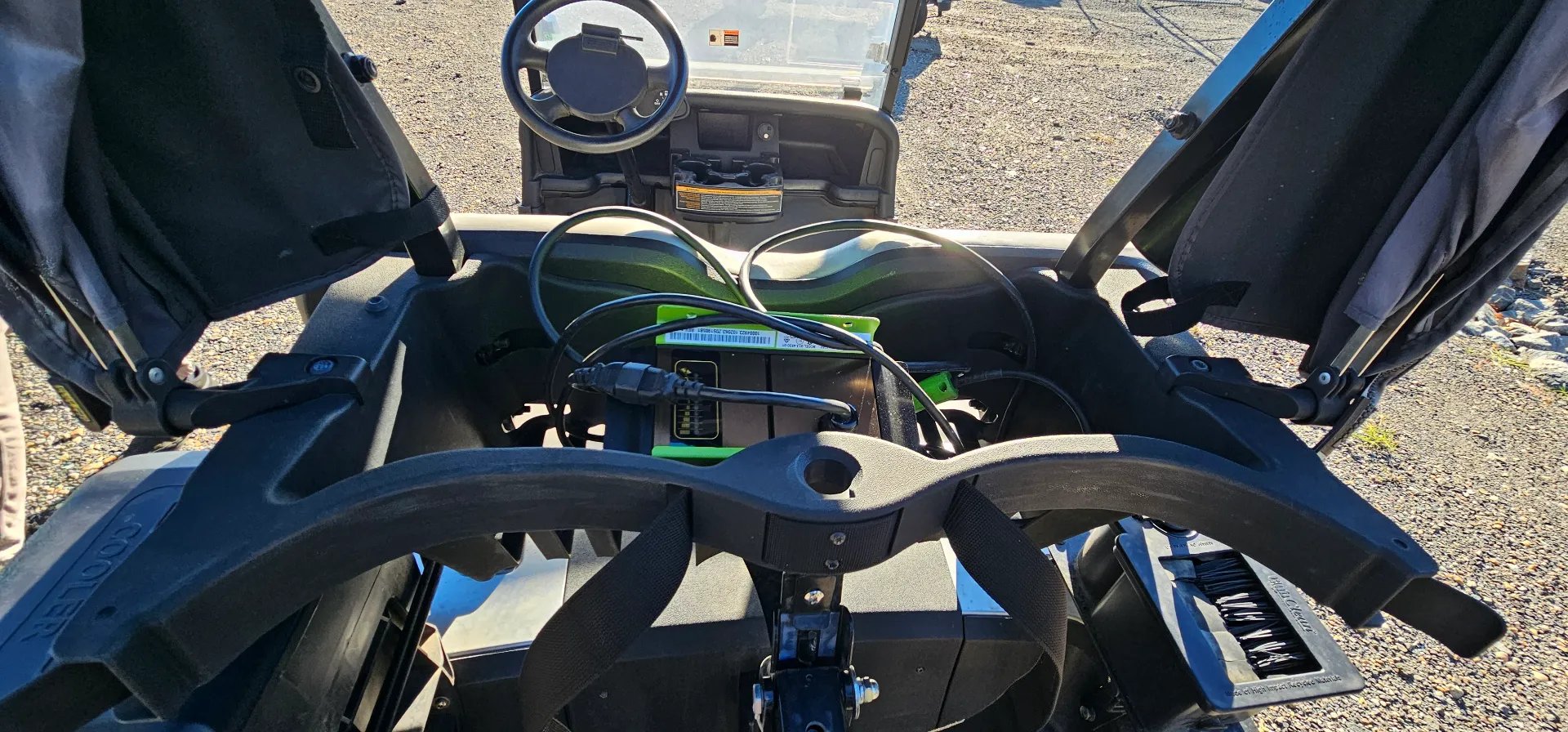

The 2021 E-Z-GO Freedom RXV uses an ELiTE 2.2, 56V Lithium battery and a 56.7-Volt V DC motor type with a 235-amp Solid-State AC Controller. Charging is provided by an ELiTE Light World Charger rated at 120/230 VAC with a 10′ DC Cord.

Technical Highlights:

• Motor Shaft Direct Drive with Limited Slip Differential
• Forward-Neutral-Reverse Integrated drivetrain
• 16.99:1 rear axle ratio
• Welded Steel with Powder-Coat Protection chassis
• Automatic Electro-Magnetic parking brake

Key Features Include:

• Independent A-Arm Coil-Over Shock front suspension
• Mono-Leaf Spring With Hydraulic Shocks rear suspension
• Double-Ended Rack and Pinion steering

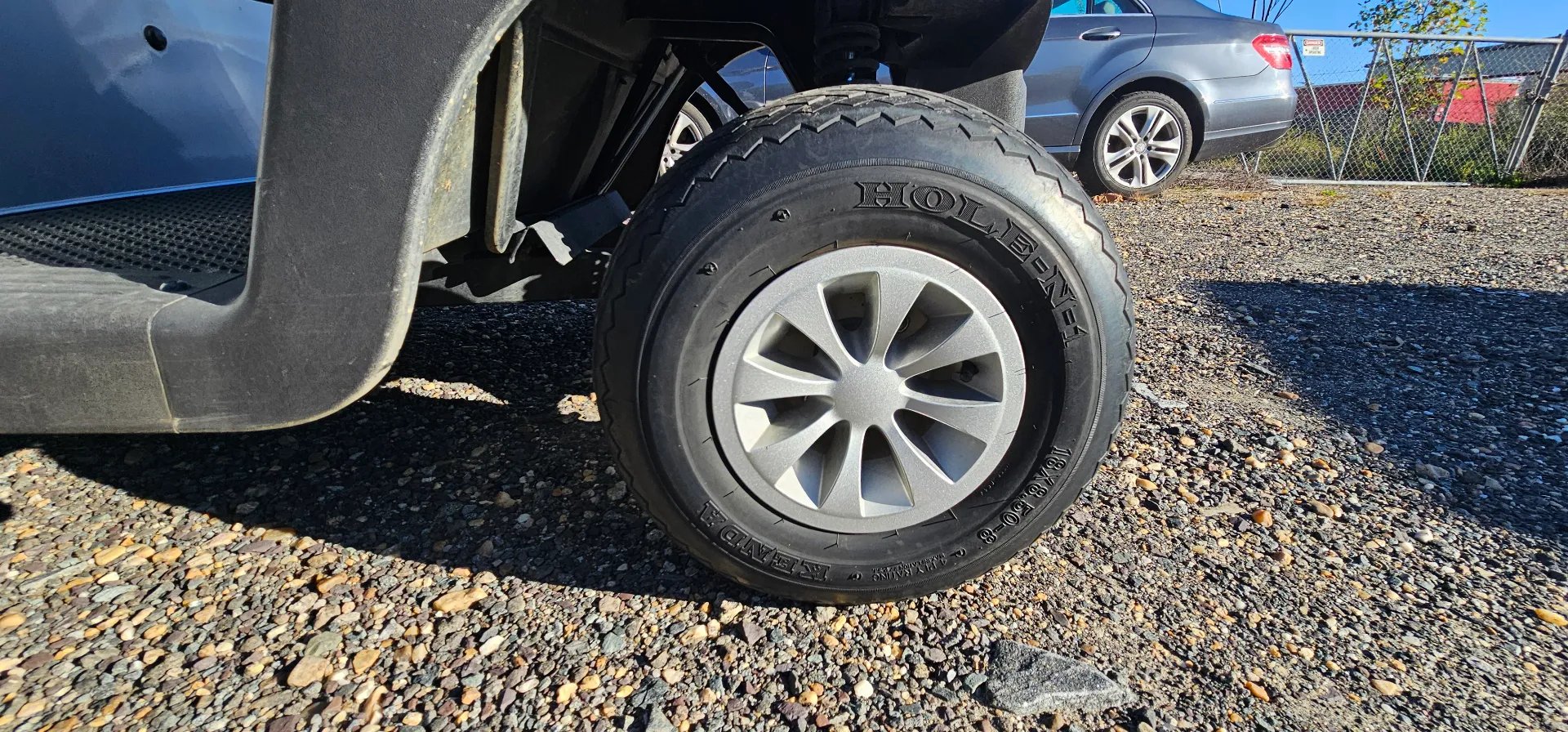

• 18 x 8.50-8 (4-ply rated) wheels and tires

The vehicle measures 94.5 in (240 cm) in length, 47.0 in (119 cm) in width, and 46.5 in (118 cm) w/o roof or 69.5 in (177 cm) w/ roof. Its wheelbase is 66 in (168 cm). Dry Weight is 615 lb (279 kg), Curb Weight is 662 lb (300 kg), and Max Capacity is 500-800 lb (227-360 kg).
